Product Discontinued. Call for Availability.

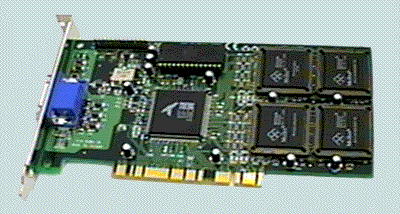

ULTIMATE WinVideo+ 2/4

Super Hardware
  • New Tseng Labs ET6100 graphics controller
    128-bit GUI and Multimedia accelerator
  • Use 2 cards to drive 2 monitors with Windows 98
  • X/Y pixel interpolation smoothing for video scaling
    Up to four simultaneous scaled video windows
  • 2.25MB MultiBank MDRAM upgradeable to 4MB
  • High refresh rates up to 90Hz eliminate flicker
  • Over 42 extended resolution modes include:
    1600 x 1200 with 256 colors (65Hz)
    1280 x 1024 with 256 colors (75Hz)
    1152 x 864 with 65,536 colors (75Hz)
    1024 x 768 with 65,536 colors (85Hz)
    800 x 600 with 16,777,216 colors (90Hz)
    640 x 480 with 16,777,216 colors (90Hz)
    132 columns by 25, 28, 44, or 60 rows of text
    80 x 43, 50 or 60; 100 x 40 columns / rows
  • 100% hardware and software VGA compatible
  • Standard VESA compatible feature connector
  • Compatible with PCI 2.x Local Bus Systems
  • FCC Class B and CE certified for low emissions

Super Speed

  • Fastest DOS performance of any card available
  • Accelerates all key Windows operations
  • Highest frame rates for video playback
  • MDRAM with 1000 Mbytes/sec peak bandwidth
    800 Mbytes/sec net MDRAM bandwidth
  • Accelerator queuing allows parallel processing by
    the ET6100 graphics processor and host CPU
  • 32-bit linear addressing and data bus interface
    Improved Tseng Multiport Cache architecture
  • The result is performance and bandwidth for the
    games, multimedia, 3-D applications of tomorrow

Super Software

  • Drivers supplied for Windows 3.1, WFW 3.11,
    Windows 95, 98, Me, Windows NT 3.51, 4.0,
    2000, DirectDraw, OS/2 Warp, Microstation,
    AutoCAD, AutoShade, 3-D Studio, Animator
  • MPEG playback support
  • Powerful Display Control Panel includes:
    On-the-fly resolution and refresh rate changes
    Five preset buttons for display settings
  • VESA Super VGA compatible BIOS
    VESA VBE, DDC1, DDC2B, DPMS Support
  • Display Power Management Signaling (DPMS)
    saves energy with compliant monitors

Super Support

  • Four year warranty on parts and labor
  • Software drivers continuously updated
  • Unlimited, accessible technical support
  • From a company specializing in micro-computer
    graphics since 1978

Image-In-Color Demo

  • Windows utility displays TGA, GIF, TIF, PCX,
    BMP, IMG, RAW, MSP images
  • Experiment with dozens of powerful image
    editing, painting, and special effects tools

WinVideo+ 4 Features

  • 4MB MoSys MultiBank MDRAM video memory
  • 1600 x 1200 with 65,536 colors (43.5Hz)
    1280 x 1024 with 16,777,216 colors (43.5Hz)
    1280 x 1024 with 65,536 colors (75Hz)
    1152 x 864 with 16,777,216 colors (70Hz)
    1024 x 768 with 16,777,216 colors (85Hz)

Note: Features unique to the '+' version which uses the ET6100 instead of the ET6000 are in bold type.
For a copy of the literature viewable and printable using Adobe Acrobat, download WinVid2.pdf
